RUSSELL CLAW

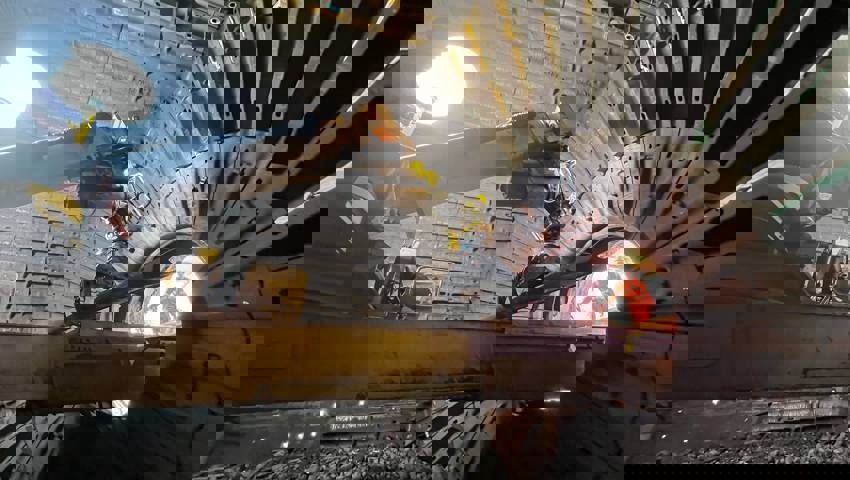

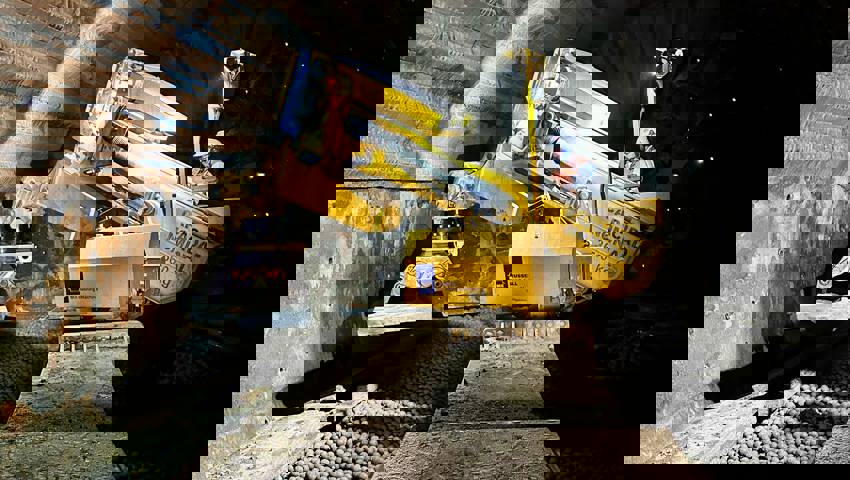

When it comes to the muck-out phase of mill relining, the RUSSELL Claw^TM grapple attachment for your RUSSELL Mill Relining Machine (MRM) is a serious piece of equipment. Tough, durable and strong, its powerful jaws will grab knocked-in worn liners from wherever they fall and deliver them to the liner cart for removal. But above all, safety is its first priority. The Claw reduces the number of crew needed inside the mill during the hazardous muck-out operation and eliminates the need for manual slinging.

BENEFITS

Transforms risk and safety: eliminates the need for manual slinging of liners.
Reduces confined space, suspended loads and mobile plant hazards for reline crews.
Versatile: works with all feed, shell and discharge liner designs from leading OEMs
High payload capacity: Lifts any liner up to 8000 kg.
Superior toughness, durability and reliability.
Requires less crew for liner removal, improves resource allocation to value-adding tasks.
Improves RUSSELL MRM utilisation, efficiency and return on asset usage.
Enables MRM operators to increase liner manipulation speed without risk to crew safety.
Facilitates faster cycle times and reduced liner removal duration.
Creates new opportunities to increase mill availability.

Contact an agent

Download spec sheet

FEATURES

: Works with all feed shell and discharge liners without
requirements for design changes

High strength HARDOX tensile steel for superior toughness and wear resistance

Incredibly rigid frame with three (3) hydraulically-powered moving jaws mounted

Jaw fingers deliver a safe, secure and steady grip and constant closing force

Integrated pry bar tool fitting to dislodge stuck liners off the mill shell

Pry bar attachment is easy to insert utilise discarded grate liner bolts after knock-in

Nonslip jaw slippers are easily replaceable

360° rotary actuator allows for easy pickup from the Grapple and Grapple Tool

Fast and easy fitment: enters mill via the liner cart and installed by the grapple’s single use adaptor tool

Fits both 2-pin and 4-pin RUSSELL MRM grapples

Easy to learn and operate via the MRM controls

Suitable for most RUSSELL 7 and 8* Mill Relining Machines 2500kg – 8000kg

Can be shared between multiple MRMs onsite

Comes with sturdy storage cradle for easy use on site

RUSSELL Claw^TM technology and processes are supported by RME’s proven operational readiness program and OEM-certified Customer Service Technicians

^{*Retrofits required for RUSSELL 7 and 8-axis MRMs pre-2023.}
: For mine sites seeking to transform risk and safety ratings and improve relining efficiency

The RUSSELL Claw is intended for use during the muck-out phase of mill relining

Enables fast, reliable, safe worn liner from the charge without manual slinging

Part of RME INSIDEOUT Technologies tools and methods which remove reline crew from inside the mill during hazardous relining phases

RME is the world’s leading Original Equipment Manufacturer (OEM) of mill relining systems.

570+

RUSSELL MRMs engineered, manufactured and delivered.

1300+

THUNDERBOLT Recoiless Hammers sold.

440+

Mine sites served by RME assets and services.

"The efficient RUSSELL Claw^TM is the ultimate solution for muck-out. Its powerful jaws can quickly and effortlessly pick up worn liners and deposit them on to the MRM Linercart. But what sets it apart is its focus on safety. The Claw eliminates the dangerous task of manually slinging liners, which has long been a major hazard during the process of mill relining."

Tarnya McBurney

Product Manager – RUSSELL Mill Relining Placement Machines & RUSSELL Feed Chute Transporters, RUSSELL MINERAL EQUIPMENT
